Servos
1. 6.0V-8.4V high voltage. High performance digital high voltage coreless.
2. Waterproof performance: IP67.
3.Precision metal servo.
4. Extensive use of digital servos: Steering servo (control angle 180°) compatible with 1/10,
RC cars/robots/boats and other RC models.
describe:

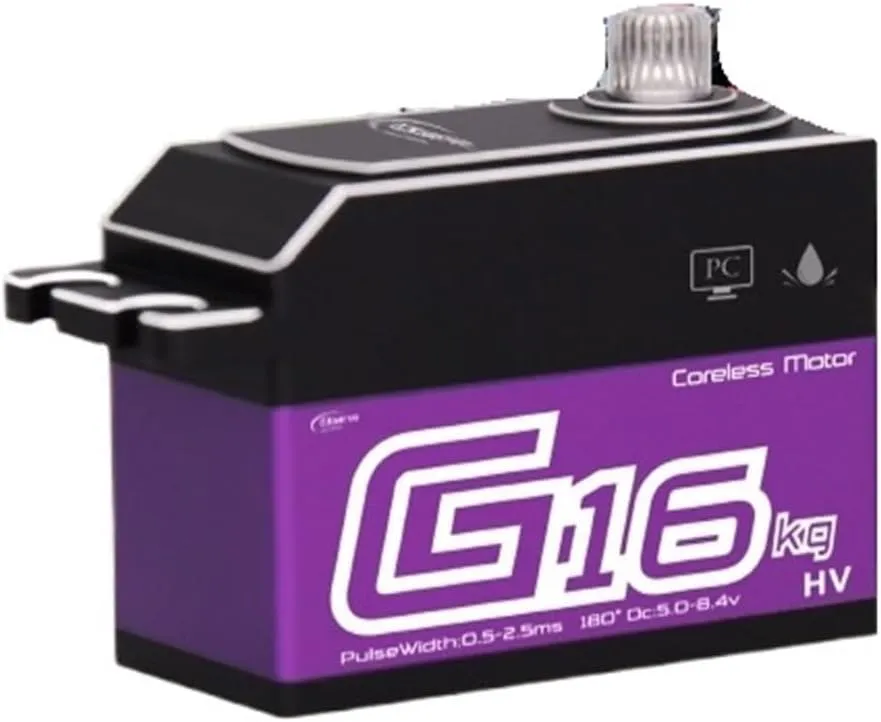

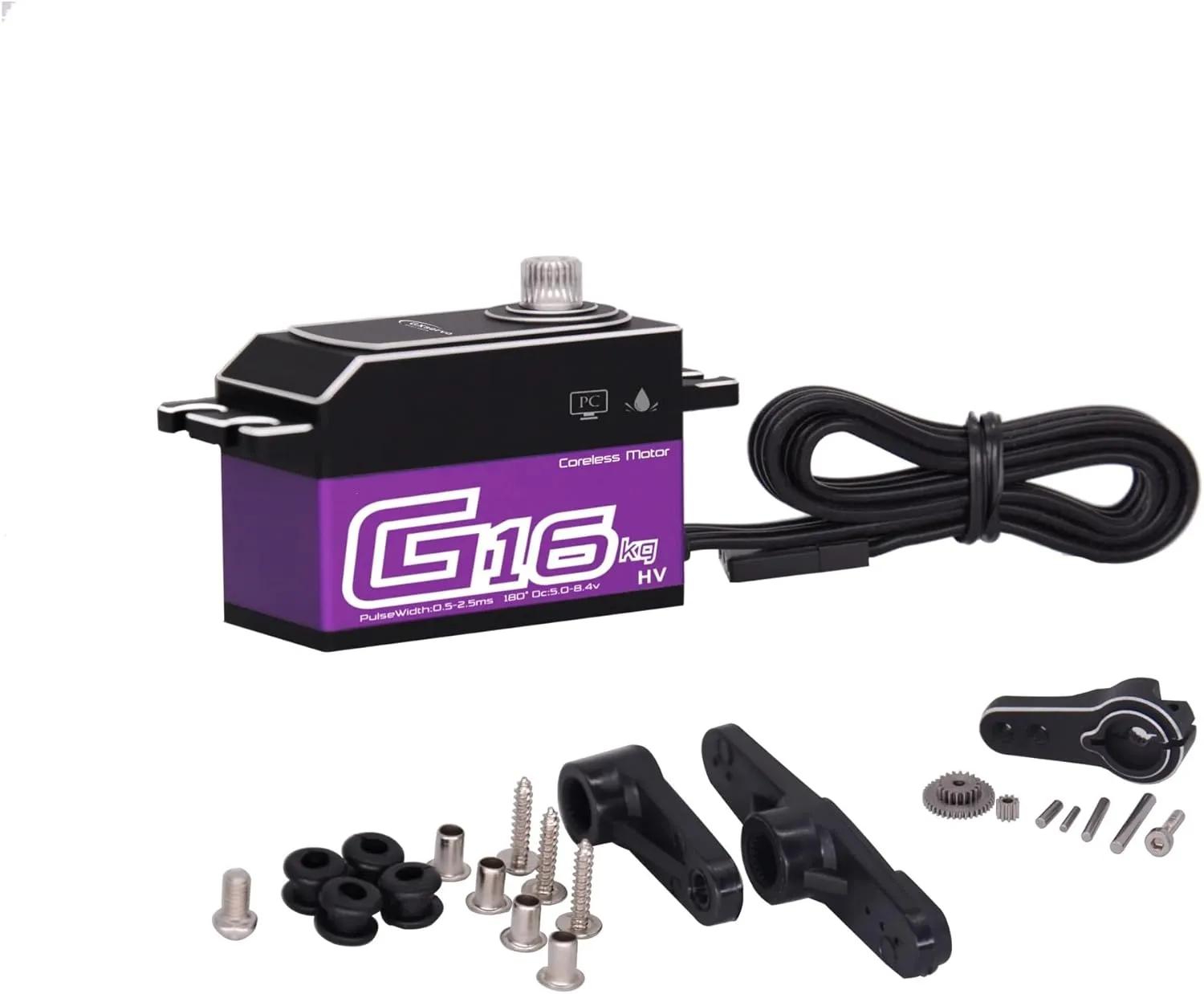

16KG high torque digital waterproof servo, using hollow cup motor, compared with ordinary servos, faster speed,
The response is also very fast, with a high operating voltage range of 6.0V~8.4V.
It's a great accessory for your RC cars trucks crawlers boats robots and DIY model toys!
Specification:

Model: G16
Pulse width: 500s-2500s=180°/270°/360°
Operation speed: (6.0V) 0.08sec60°
Operation speed: (7.4V) 0.07sec60°
Operation speed: (8.4V) 0.06sec60°
Stall torque (6.0V): 14kg.cm
Stall torque (7.4V): 16kg.cm
Stall torque (8.4V): 18kg.cm
Working voltage: 4.8V-8.4V
Gear Type: Stainless Steel
Motor: Coreless motor
Dead zone: 3s
Ball bearing: 2BB
Working frequency: 1520s/330hz
Shell material: CNC aviation aluminum alloy
Spline teeth: 25T
Control system: customizable (PWM, 485, TTL, CAN)
Size: 41*20*28.5mm
Weight: 70 g
notes:
Due to the different monitor and light effects, the actual color may be slightly different from the picture color.
Please allow 1-3mm errors due to manual measurement.
