- The FT90R is a micro-sized digital servo with continuous rotation. At 6 V, it has a maximum rotation speed of around 135 RPM (no-load) and can produce up to 21 oz-in (1.5 kg-cm) of torque
- The servo can be controlled using a direct connection to a single microcontroller I/O line without any additional electronics, which makes it a great miniature actuator for beginner robotics projects; just throw on a pair of wheels and your robot is ready to roll!
- Operating Voltage: 4.8 - 6 Volts; Peak Torque: 1.5kg/cm @ 6V
- FT90R is a small digital servo, lightweight and only 9g, it is more accurate than analog servo FS90R
- Wide application: This FT90R micro servo can compatible with arduino smart cars, micro:bit robot and Raspberry pi robot kits, remote control helicopters, micro robot, robot arm and boats. All kind of R/C Toys and Arduino experiments
Description:
Size: 22.9mm X 12.1mm X 26.5mm
Weight: 9g
Gear type：Plastic Gear
Limit angle: 360°
Bearing: NO Ball bearings
Horn gear spline: 20T
Horn type: Plastic,POM
Case: ABS
Connector wire: 250mm ±5 mm JR
Motor: Metal brush motor
Splash water resistance: no
Storage Temperature Range: -30°C~80°C
Operating Temperature Range: -10°C~70°C
Command signal:Pulse width modification
Amplifier type:Pulse width modification
Pulse width range: 900~2100μsec
Neutral position: 1500 μsec
Running degree: 360°
Dead band width: ±20μsec
Rotating direction:
CW(1500~1000 μsec),CCW(1500~2000 μsec)
Operating Voltage: 4.8V - 6V
No load current: 130mA @ 6V
Rated Continuous torque: 0.5kg/cm @ 6V
Peak Torque: 1.5kg/cm @ 6V
Stall Current: 900mA
Package Includes:

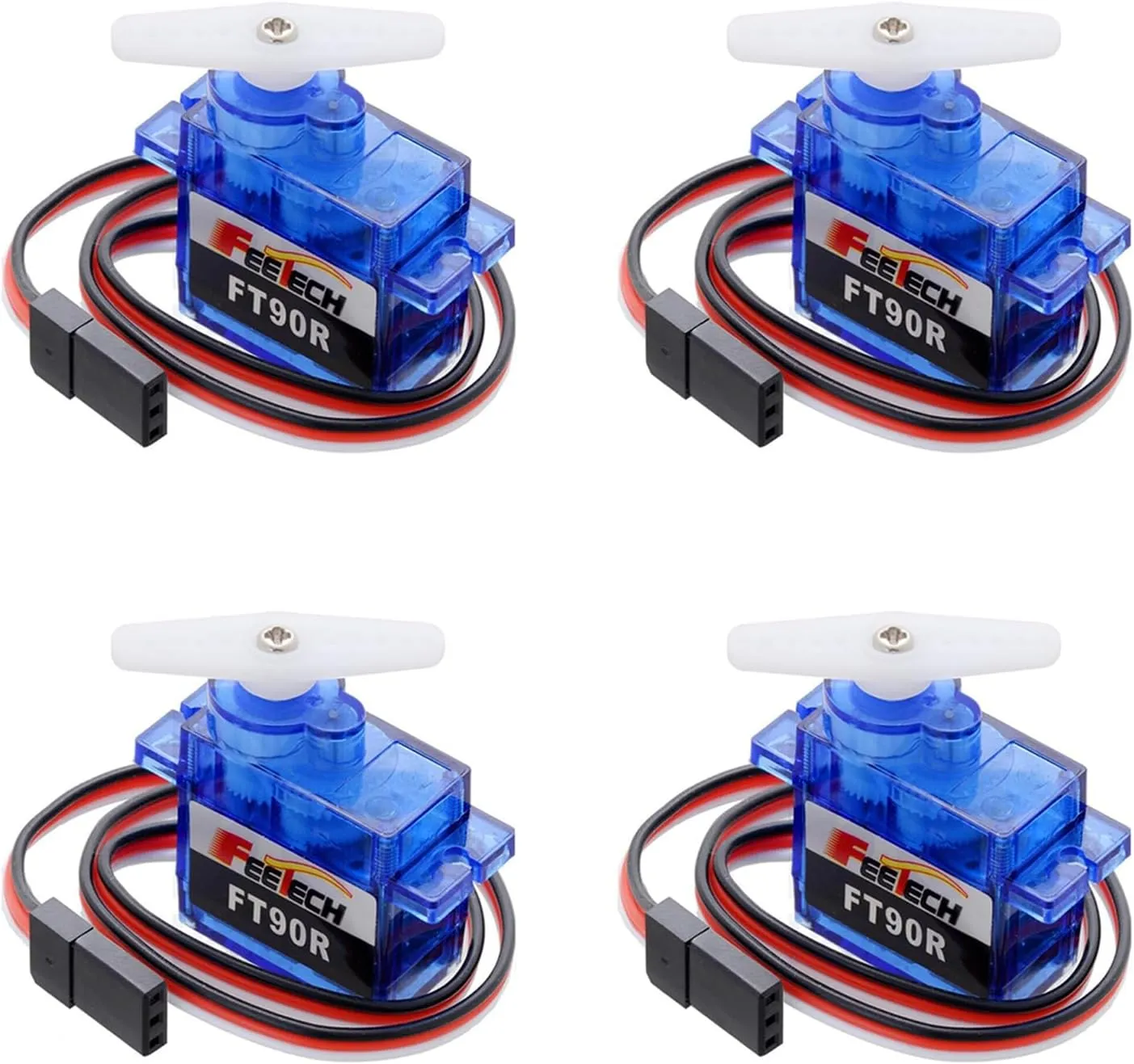

4 X FT90R servo

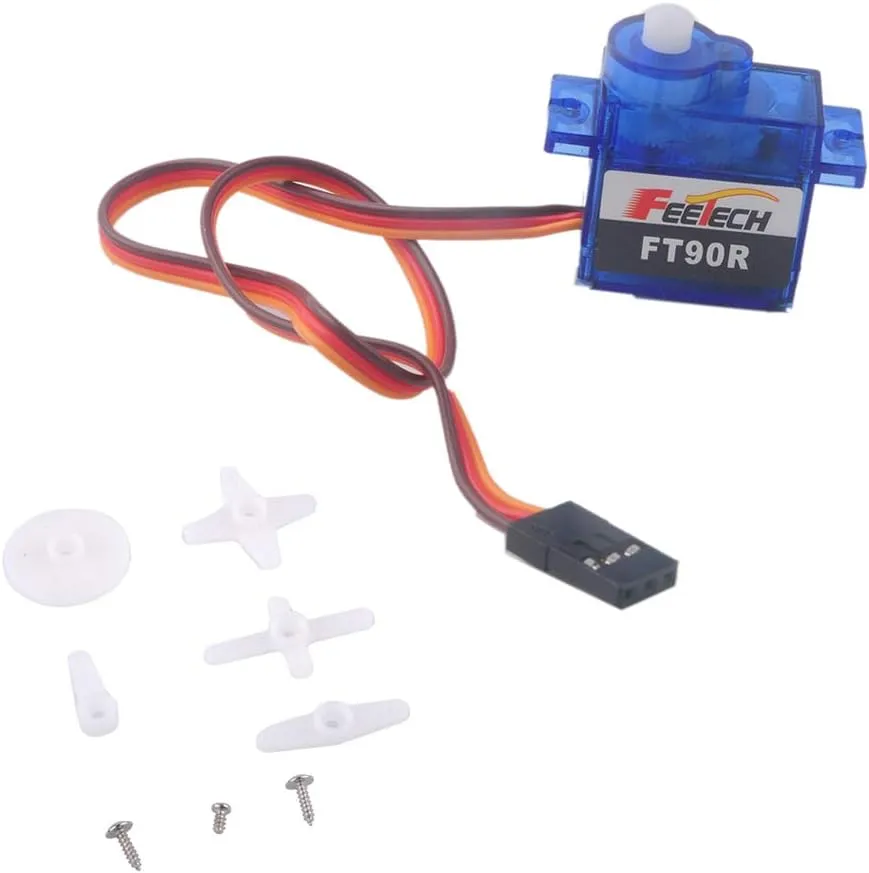

4 X Servo accessories
